Water Wash Paint Booths

We are Manufacturer, Supplier, Exporter of Water Wash Paint Booths, Spray Painting Booths, Side Draft Wet Spray Booths. Our setup is situated in Pune, Maharashtra, India & majorly we serve our products to customers from India, Sri Lanka, Bangladesh & Gulf countries like Bahrain, Oman, Qatar, Saudi Arabia, Egypt, Jordan, Lebanon, Syria, Yemen, Kuwait, Dubai, UAE ( United Arab Emirates ) etc.

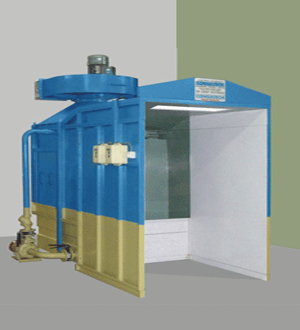

DynaSpary - Water Wash Paint Booth
Selection

Highest efficiency in a spray booth is always attained when the capacity, size and other specifications are most suited to the kind of work to be performed.

The following factors are important while selecting the most appropriate booth for a specific coating component.

  • Size of the article to be coated.
  • Rate of production (i.e. Paint Consumption).
  • Product handling method.

Features

  • Water curtain is achieved with pump. Lower installed electrical load (thus low running coast), less negligible maintenance.
  • The advanced air washer design ensures high air washing/paint collection efficiency.

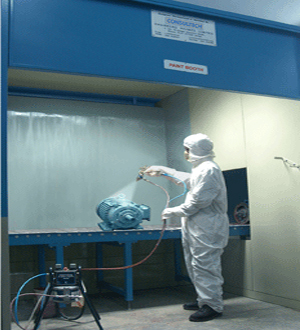

  • The air-slot design, opening at the bottom of the wash down sheet (water wall) ensures uniform air movement in the booth.
  • The over sprayed paint gets sucked in by the bottom suction itself.
  • Superior construction: booth is constructed by nut-bolt.

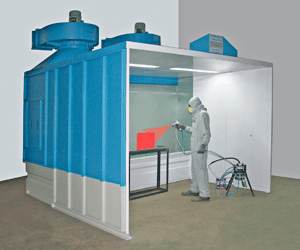

Side Draft Wet Spray Booths
Specifications
Models Dimension in (mm) Exhaust Blower Pump Tube Lights
W/w D/d H/h

Capacity M3/hr

Motor Rating

Cap. Watts Nos.
DynaSpary-WW15 2000/1500 2850/1500 3600/2100 1 x 6800 1 x 3.12 KW 1.5 KW 2 x 36 1
DynaSpary-WW21 2600/2100 2850/1500 3600/2100 1 x 7900 1 x 3.70 KW 2.25 KW 2 x 36 1
DynaSpary-WW30 3500/3000 3250/1800 3600/2100 2 x 6800 2 x 3.12 KW 3.75 KW 2 x 36 2
DynaSpary-WW36 4100/3600 3250/1800 3600/2100 2 x 7900 2 x 3.70 KW 3.75 KW 2 x 36 3

Note

(i) W x D x H : Overall Width x Depth x Height

(ii) w x d x h : Working Width x Depth x Height


Larger sizes are available against specific requirements.

Optional: Flameproof accessories are available against specific requirements.

Also available in stainless steel construction.
